The frozen french fries making machine is used to process batches of fresh potatoes into half-fried frozen french fries. The fully automatic French fries production line mainly involves the processes of potato cleaning and peeling, potato cutting, potato blanching, dehydration, frying, degreasing, quick freezing, and packaging with the capacity of reaching up to 2000kg/h. This is to introduce the 200kg model, suitable for medium-scale processing units. The automatic frozen french fries processing plant has the advantages of low energy consumption, multiple functions, high return, and convenient use and maintenance, suitable for small and medium french fries processing factories, workshops, restaurants, canteens, etc.
Frozen french fries making machine overview
Frozen french fries production process:
Lifting and feeding → cleaning and peeling → picking and sorting → lifting and feeding → slicing (strips) → rinsing → blanching and color protection → air-cooled dehydration → frying → air-cooled deoiling → quick freezing → conveying → packaging
Final products: Frozen french fries, potato chips, finger chips, sweet potato chips, fried cassava chips, etc.
Outputs: 100kg/h, 200kg/h, …, 2000kg/h.
The small and medium output is about 50-300kg/h, and the large output reaches about 300-2000kg/h
Customized services: available (machine material, capacity, machine size, voltage, heating method, etc.)
Working video of french fries manufacturing plant

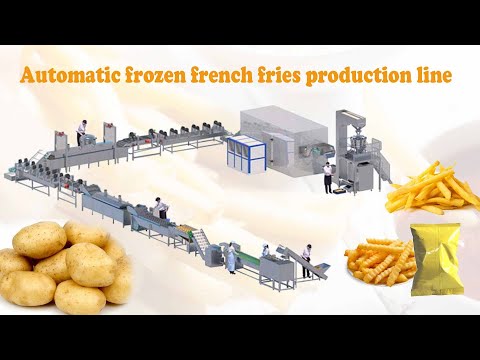

3D stimulation video
Live video recording of French fries processing plant
Introduction to main machines of automatic french fries processing line
The following items are the main parts of the frozen french fries making machine.
Potato cleaning and washing machine
The brush-type potato washing and peeling machine is adopted, which can complete the work of cleaning and peeling at the same time. High efficiency and no damage to products.
It is suitable for making potato slices, or potato strips. The sizes of the slices and strips can be adjusted. Generally, it reaches from 6*6mm to 15*15mm.
It blanches the potato strips to remove excess starch and maintain the color of the potatoes. The blanching machine can also be used as a french fries continuous frying machine. The oil temperature is precisely controlled, thus ensuring the quality and taste of the fries. The fryer can fry continuously and work automatically.
Continuous french fries freezing machine
A tunnel quick-freezing machine is specially used for freezing a large number of products in a very short period of time. The french fries flash freezing machine ensures that the product will not stick to itself and that there is no ice. The french fries maintain their quality and keep freshness and taste.
Frozen french fries making machine technical parameter
| Order | Machine name | Model of 200kg/h |
| 1 | Hoist | Size: 2500*850*1400mm Length of roller: 600mm Power: 0.75kw Material:304SS |
| 2 | Potato Washing And Peeling Machine | Size: 2800*850*900 mm Length of roller: 1800mm Power: 4kw Material:304SS |
| 3 | Manual picking belt | Size: 3000*850*800mm Length of roller: 600mm Power: 0.75kw Material:304SS |
| 4 | French Fries Cutting Machine | Size: 850 * 850 * 1000 mm Power: 0.75kw Cutting strip size: 3-8mm Material:304SS |
| 5 | Hoist | Size: 2500*1050*1400mm Length of roller: 800mm Power: 0.75kw Material:304SS |
| 6 | Potato Blanching Machine | Size: 4000*1150*1250mm Mesh belt width: 800mm Electric heating power: 90kw Material:304SS |
| 7 | Water Drying Machine | size:4000*1100*1100mm Mesh belt wideth:800mm power:5.5kw |
| 8 | French Fries Frying Machine | Size:4000*1150*1550mm Mesh belt width: 800mm Electric heating power: 90 kw Material:304SS |
| 9 | Oil Dryer Machine | size:1200*700*750mm weight:420kg power:2.2kw |
| 10 | Air cooling machine | Power:5.5KW, 380V/50Hz Number of fans: 4 Size:4000x1100x1100mm |
| 11 | Pembeku Cepat | Length: 9100mm Freezing center temperature: – 18 ° Material: 304SS |
| 12 | Automatic packing machine | Maximum weight: 1000g Single weighing range: 10-1000g Weighing speed: 60 times/min |
The technical data of frozen french fries making machine contains the specifications of major machines and auxiliary equipment required. For special needs, we can provide customers with tailored services. Welcome to send us your specific requirement for professional advice whether you are a first-time entrepreneur or french fries producer of different scales.
