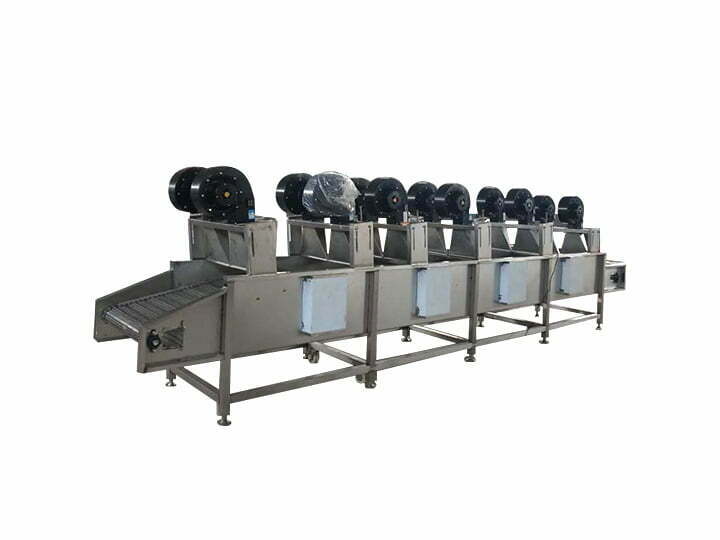

The air drying machine is to remove the water from the surface of potato slices or potato strips by using strong air at normal temperature. This machine is also widely applied to other fruits and vegetables for convenient packing. The air dryer adopts a continuous intermittent conveying system to make the raw material run smoothly. During the delivery process, through the discontinuous difference in speed and height of the mesh belt, the raw material is evenly distributed and turned over so that the surface is evenly exposed to wind. Most important, it can avoid the incompleteness and secondary pollution of artificial water removal. Meanwhile, it prevents damage to the raw materials caused by high-temperature drying.
The technical parameter of potato chips air drying machine
| Model | TZ-510 | TA-520 |
| Mesh belt width | 1000mm | |
| The Speed adjustment mode | manual speed adjustment | manual speed adjustment |
| Number of fans | 12 fans | 10 fans |
| Power | 12KW, 380V / 50Hz | 7.5KW,380V / 50Hz |
| Material | high-quality food-grade stainless steel | high-quality food-grade stainless steel |
| The thickness of fan fixing plate | 2mm | |
| Size | 6000×1700×1500 | 3500x1200x1400mm |
The advantage of chips air drying machine
- The air dryer uses a large air volume and low noise fan, and it is designed to be transported repeatedly. The counter-wind device can prevent uneven air drying.
- Air drying machine adopts frequency conversion conveying with adjustable speed.
- The water removal rate is high and the air-drying effect is good.
- The side plate and fan fixing plate are spliced by a 2mm thick stainless steel plate, the column is made of 50 * 50 stainless steel square tube.
- The bottom is equipped with an adjusting wheel, which makes it easy to move.
- This machine is made of high-quality stainless steel. It can effectively remove the water droplets on the surface of the material, greatly shortening the labeling and packing work time.
- It is very suitable for the drying of potato chips in the french fries production line. And it can effectively protect the color and quality of potato chips.
- The air dryer can dry high or low-temperature meat products, vegetable products, and other vacuum packaging products after sterilization.
- Proper temperature control greatly shortens the drying time of the product and changes the condition of natural wind in wet and cold weather.
- Two rows of fans match with the heating system, and the switch can be adjusted according to the actual situation.
- The side plate and fan fixing plate are spliced by a 2mm thick stainless steel plate, the column is made of 50 * 50 stainless steel square tube.
- The bottom is equipped with an adjusting wheel, which makes it easy to move.
Why to choose Taizy air drying machine?
1. Compared with the traditional drying and dewatering methods, our air dryer is simple to operate and easy to use. It can be used by simply connecting the power supply. The water removal rate is over 99%. And there is no scale pollution on the surface of the package.
2. The product can be directly packing after dewatering, and it can match with sterilizers. It is especially suitable for drying bagged products such as high and low-temperature meat products and vegetable products after sterilization. You just need to put the sterilized product into the conveyor mesh belt, and the air generated by the air drying machine is sprayed out through the nozzle. It is a normal temperature, and it can achieve the effects of removing water and grease.
3. Machine is made of high-quality stainless steel with frequency conversion speed control. It runs smoothly with a small size and high efficiency.
Structure of potato chips air dryer
- The electric control box is made of 304 stainless steel, which is sturdy and durable.
- PLC + touch screen integrated intelligent control, the process can be displayed on the touch screen with a high degree of automation.
- The air dryer itself has a self-check system. When there is a problem, the system will automatically alarm, and the fault location will be displayed on the screen to remind you to replace it in time.
- The air drying machine is equipped with two sets of automatic and manual control systems, which can be adjusted according to needs.
- The use of intelligent automation control improves the grade of the potato chips air drying machine. All electrical part is brand-named so that customers can buy the necessary accessories at any time.
The working principle of air-drying equipment
The raw material firstly enters the air dryer, and the fan on the machine blows out the natural moisture. Some of the water drops fall to the ground and the other evaporates into the air. Because the mesh belt is multi-layered, the material will be turned over during the transportation process, increasing work efficiency.
