Automatic Frozen French Fries Production Line

The fully automatic fries production line composed of these fries making machines has very high output and high quality, which is ideal equipment for large potato chips and fries processing plants.
large frozen french fries plant
5/5 - (55 votes)

The frozen french fries production line contains professionally designed french fries making machines to manufacture frozen french fries from raw potatoes. The fries production process mainly includes potato washing and peeling, french fries cutting, blanching, drying, frying, oil drying, freezing, and packaging. The French fries production line features high efficiency, high-quality products, various outputs, cost-effectiveness, easy operation, etc.

According to the output, the french fry processing plants can be divided into the small semi-automatic french fries processing line and fully automatic french fry plant. The general output of the small-scale french fries production line is 50kg/h, 100kg/h, 200kg/h, and 300kg/h. The output range of the fully automatic frozen french fries production line is 300kg/h-2t/h.

As a French fries production line manufacturer, we offer whole sets of french fries making machines, as well as single machines, and supporting equipment, and also provide customized machines to match customer needs. French fries processing plant is suitable for snack food factories, restaurants, hotels, food workshops, fast food stories, and so on.

Frozen French fries production line overview

Application: Mainly used to produce frozen french fries, potato chips, finger chips, french-fried potatoes

Output: French fries production line has semi-automatic and fully automatic production lines. The small-scale french fry line’s output is 50-300kg/h, and the output of the fully automatic line is 300-2000kg/h

Customized or not: yes

Heating method: electric heating, gas heating

Popular areas: Turkey, Germany, Italy, Algeria, Saudi Arabia, Iraq, and other places

Production process: Hoist-cleaning and peeling-selection-cutting potato strips-hoist-removing impurities-blanching-dehydration-frying-degreasing-freezing-packaging.

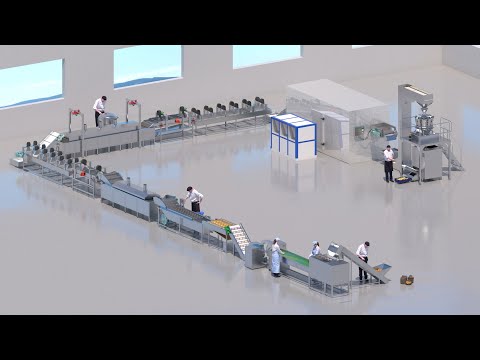

Frozen chips processing plant 3D version video

Amazing 3D automatic frozen french fries production line | potato finger chips making machine

Semi-automatic frozen french fries production line process

  • Potato washing & peeling
Potato washing machine

size:1600*850*800 mm
power:0.75kw
capacity:200kg/h
weight:280kg

The potato washing and peeling machine has washing and peeling functions. The brush rollers inside the machine can fully peel the potatoes, and they won’t damage the potatoes. The washing time is around 5-6 minutes.

  • French fries cutting
Potato strips cutting machine

size:950*800*1600mm
cutting size:6*6mm to max 15*15mm(it can be customized)
power:1.1kw
capacity:600-800kg/h

This french fries cutter machine is to cut potatoes into strips. The potatoes firstly are cut into slices, and then cut into strips. The size of the potato strip is adjustable, which can be achieved by changing the gap between the blades. Usually, most customers prefer the size of 8*8mm and 9*9mm, and its range is 6*6mm to a max 15*15mm. By the way, the blades are vulnerable to spare parts, so I strongly recommend you buy extra blades.

  • Blanching
Potato blanchine machine

size:1200*700*950mm
power:12kw
weight:120kg
capacity:100 kg/h

The blanching machine is to remove the starch of the potato strips so that the final french fries bear bright color and better taste. The heating mode of it includes electric heating and gas heating, and you can choose anyone on the basis of your situation. The blanching temperature is 80-100℃. It has an automatic temperature control system, and the temperature is adjustable.

  • De-watering
Dewatering machine

size:1100*500*850mm
power:1.5kw
weight:150kg
capacity:200kg/h

The de-watering machine can prevent the surface of the blanched fries from containing too much water and splashing. It uses the centrifugal principle for dehydration, and the dehydration time can be timed. Generally, the blanching time is 1 to 2 minutes. Besides, an air drying machine is often used in the frozen french fries production line, which can continuously remove the water from the surface of potato strips with strong air.

  • French fries frying
French fries frying machine

size:1200*700*950mm
power:24kw
weight:120kg
capacity:100 kg/h

Frying is an important step in the frozen french fries production line. The frying temperature of 160-180℃ and the potato strips need to fry for 40-60s. This french fries frying machine bears high quality compared with other machines in the market.

  • French fries de-oiling
Potato chips deoiling machine

size:1100*500*850mm
power:1.5kw
weight:350kg
capacity:200kg/h

After frying, you should use a deoiling machine to remove the much oil on the surface of the fried potato strips. The deoiling machine is as same as dewatering machine.

  • Frozen french fries
French fries freezer

A quick freezer machine is to freeze the fried French fries so that they won’t stick to each other when packing. The freezing time is 20-30minuts, and the minimum temperature is -45℃. The French fries we usually eat at McDonald’s are fried again out of the freezer machine. The machine size can be customized according to requirements.

  • French fries packaging
Packing machine

A french fries packaging machine is to pack various snacks, with the multiful functions of automatic weighing, packaging and sealing. We offer vacuum potato chips packaging machine and ten-bucket potato chips packing machine.

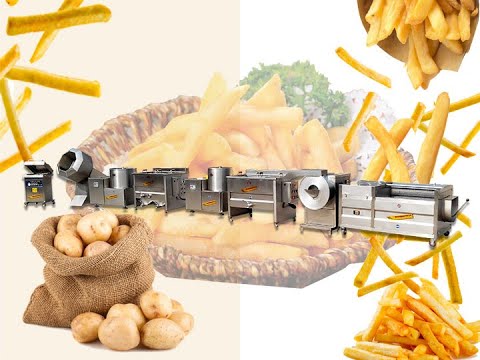

Semi-automatic french-fried potatoes working video

semi automatic french fries making machine | how to make french fries

Small-scale french fry processing machines’ features

Our small-scale frozen french fries production line has many outstanding features:

1. The potato cleaning machine in the small frozen French fries production line has two functions of cleaning and peeling. The brush roller inside the machine can completely peel the potatoes without damaging them. The washing time is about 5-6 minutes. In addition, it can also clean other fruits and vegetables such as ginger, dates, and carrots.

2. The French fries cutting machine in the semi-automatic frozen French fries production line is made of imported components from Taiwan. Its cutting range is 6*6mm~15*15mm. Of course, we can customize multiple cutting-size blades according to customer needs. By changing the blade, you can use one French fries cutter to make multiple sizes of French fries.

Frozen french fries production line
French Fries Making Machine

3. Both the blanching machine and frying machine in this production line have electric and gas heating methods. Their electric heating tubes are composed of seamless heating tubes, and their power is low. The use of seamless heating tubes can make the blanching machine and fryer have safe and efficient functions.

4. The freezer is the most important machine that distinguishes the frozen French fries production line from the potato chip production line. The freezer can be equipped according to customer needs.

100kg/H Semi-Automatic Frozen French Fries Processing Machine

Fully automatic french fry plant process

Compared with the semi-automatic frozen french fries production line, the automatic fries production line replaces the automatic fries machine. In addition, it also adds a fries picking machine and a washing machine before the blanching machine.

And this is what distinguishes the frozen French fries production line from the potato chip production line. It also can produce potato chips by adding or reducing individual machines on the basis of the french fries production line.

The machine required in the fully automatic frozen french fries processing plant

As shown in the table, there is a series of machines with typical parameters in the automatic frozen French fries production line. In contrast with a semi-automatic french fries processing plant, several hoists, conveyors, and a different type of drying machine and packaging machine are used to realize continuous production and reduce labor. The main machines and supporting equipment can be flexibly adjusted according to actual needs.

ItemPictureParameters
1. hoist machine Hoist conveyorModel:  TZ-100
Power:0.55kw
Voltage:380v/50Hz
Weight:180kg
Size:1500*800*1600mm
Belt speed: adjustable
Material: 304 stainless steel
2. washing and peeling  Potato washer and peelerModel: TZ-2600
Power:4.37kw
Voltage:380v/50Hz
Weight:480kg
Size:3400*1000*1400mm
Inside screw speed: adjustable
Capacity:2400kg/h
Material: 304 stainless steel
3. picking conveyor  Picking conveyorModel: TZ-110
Power:0.75kw
Voltage:380v/50Hz
Weight:280kg
Size:3500*800*900mm
Belt speed:  adjustable
Material: 304 stainless steel
4. potato cutter  Multifunctional slicer machineModel: TZ-600
Power:1.1kw
Voltage:380v/50Hz
Weight:120kg
Size:950*800*950mm
Capacity:600kg/h
Material: 304 stainless steel
Notes: price only includes 1 set of blades, if want a different size, change the blade.
5. water bucket hoist Water hoisterModel: TZ-200
Power:0.75kw
Voltage:380v/50hz
Weight:330kg
Size:1500*800*1600mm
Mesh belt: 500mm
Material: 304 stainless steel
6. selecting machine Selecting machineModel: TZ-1400
Size:2400*1000*1300mm
Power:1.1kw
Voltage:380v/50hz
Material: 304 stainless steel
Function: Select a different potato size, which will make the final potato size the same.
7. rising machine Rinsing machineModel: TZ-4000
Power:4.1kw
Voltage:380v/50Hz
Weight:400kg
Capacity:800kg/h
Size:4000*1200*1300mm
Belt width: 800mm
Material: 304 stainless steel
8. blanching machine      Blanching machineModel:TZ-6000
weight: 1200kg
size:5000*1200*2400mm
Capacity:600kg/h
Temperature: 95 degree
Belt width:800mm
Heating type: Electric Burner
power:500000kcal
Material: 304 stainless steel
9. water vibrate remover  Water removerModel: TZ-800
Power:0.5kw
Voltage:380v/50Hz
Size:1800*1000*900mm
Material: 304 stainless steel
10. air cooler  Air dryer machineModel: TZ-300
Power:6.5kw
Voltage:380v/50Hz
Weight:700kg
Size:4000*1200*1600mm
Fan:8pcs
Fan power:0.75kw
Wind pressure:120pa
Speed:2800r/min
Belt width: 800mm
Material: 304 stainless steel
11. hoist Hoist conveyorModel: TZ-120
Power:0.75kw
Voltage:380v/50hz
Weight:180kg
Size:1500*800*1300mm
Material: 304 stainless steel
12. frying machine Frying machineModel: TZ-6000
weight: 1200kg
size:6000*1200*2400mm
Capacity:600kg/h
temperature: 95 degree
Belt width:800mm
Heating type: Electric
Burner power:500000kcal
Burner brand: Italy liya road
Material: 304 stainless steel
13. oil tank Oil tankOil pump motor power: 1.5KW/ 380V/50Hz
Size: 1400*1300*1850mm
Material:304 stainless steel, the oil storage tank is equipped with a  heating function, with a filter, and the thickness is 3mm, with an insulation layer.
14. oil filter Oil filterCoarse filter tank diameter: 300mm
Fine filter tank size: 450mm
Circulating pump:1.5kw
15. fuel tank Fuel tank1. The fuel tank is equipped with a heating device.
2. The oil that needs to be added is heated to a certain temperature through the heating tube, and then sent to the inside of the fryer through a circulating pump to achieve the purpose of adding oil.
16. oil vibrate remover  Oil removerModel: TZ-800
Power:0.5kw
Voltage:380v/50Hz
Size:1800*1000*900mm
Material: 304 stainless steel
17. air cooler Air dryer machineModel: TZ-300
Power:6.5kw
Voltage:380v/50Hz
Weight:700kg
Size:4000*1200*1600mm
Fan:8pcs
Fan power:0.75kw
Wind pressure:120pa
Speed:2800r/min
Belt width: 800mm
Material: 304 stainless steel
18. hoist Hoist conveyorModel: TZ-120
Power:0.75kw
Voltage:380v/50hz
Weight:180kg
Size:1500*800*1300mm
Material: 304 stainless steel
19.  freezer FreezerModel: TZ-10000
Out size:160000*3300*2600mm
Compressor:150hp
Power of mesh:2.2kw
Fan:12pcs *1.5kw
Mesh belt motor:Siemens
PLC: Siemens SUS 304
Inner box thickness:0.8mm
External thickness:0.8mmInner
Insulation cotton;120mm
Compressor: Germany Bitzer
One unit:30PTotal 3 units in parallel
Note: Price with compressor price
20. packing machine French fries packing machineA.Feed conveyor
Delivery value:3-6m³/h
Voltage:380v
Weight:500kg
B.TZ-720 Vertical AutomaticPackaging Machine
Bag length:100-400mm(L)
Bag width:180-350mm(W)
Max width of roll film:720mm
Packing speed:5-50bags/min
Measuring range:6000ml(Max)
Air consumption:0.65Mpa
Gas consumption:0.4m³/min
Voltage:220VAC/50HZ
Power:5kw
Dimension:1780*1350*1950mm
Notes: Includes bag of former
C.10 buckets multi-head weighted Machine
Maximum weighing:1000g
Single weighing range:10-1000g
Weighing accuracy:±0.3~1.5g
Weighing speed: Max 3000cc
Control unit:8.4 inch key screen
D.PlatformNon-slip countertop, guardrail around, practical and safe.
E.Finished product conveyor
21. french fries freezing storage 10tonns, -20°C Frozen fries storage binSize:5*5*2.4m
100mm color steel polyurethane insulation board: 98m²
Kumen: 1
The unit increases the heat dissipation of 80 radiators 8
horses: 1 set
Air cooler: 1
Computer automatic defrosting control cabinet: 1 set
Solenoid valve: 1
Expansion valve: 1
Freon: 25kg
Library body connectors and sealing decoration materials: 71m²
Line trunking and moisture-proof lighting, etc.: 1 group
Piping system and insulation: 1 set
500kg/h automatic frozen french fries production diameters

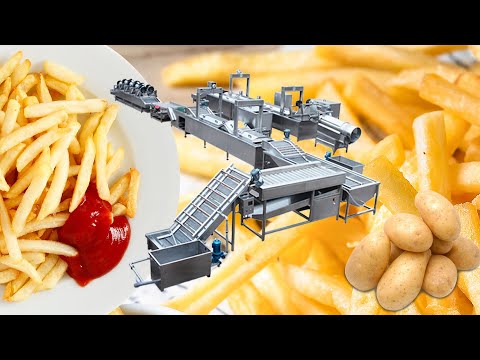

Fully automatic frozen french fries production line working video

Automatic frozen french fries production line | 500kg/h modern french fries processing line

Characteristics of automatic potato french fries line

  • The full-automatic French fries production line, adds many elevators connecting two automatic potato processing machines. Therefore, the automated French fries production line only needs one or two people to control the machine display screen to operate.
  •  In order to thoroughly clean the impurities on the potato chips, the production line adds a washing machine for selecting the size of the finger chips. The picking machine can pick out the fit-size french fries, and the smaller fries will fall off. This ensures the quality of the French fries. The machine is also the biggest sign that distinguishes the French fry plant and the chips line.
  • It adopts the vibrate de-water and de-oiling machine in the processing plant. Compare with the small fries line, it can convey fries to the next machine while achieving de-water and de-oiling functions. And it can realize the function of automatic collection of water or oil.
Vibration dehydrator
chips water/oil remover machine
  • The fully automatic frozen french fries production line uses a continuous blanching and french fries frying machine. The machine has the functions of automatic material transfer, controllable frying temperature and time, automatic cleaning of the bottom of the machine, and oil fume collection.
Continuous fries frying machine
continuous fries frying machine
  • The size of the frozen fries freezer needs to be determined according to the customer’s production output. In addition, we provide a variety of types of packaging machines, which can achieve large-volume, multi-batch, quantitative packaging. The customer needs to provide the size and weight of the packaging.

Precautions for developing frozen fries business

1. First of all, you should clearly know the final product you need to make and its size. The sizes of frozen French fries in different regions are not exactly the same. The most popular size of French fries is 3-7mm, but there are certain differences in the most popular size in various places.

2. Before starting the fries production business, you should conduct a detailed investigation of the local fries market to profit from the production of fries. For example, the varieties of potatoes and their prices, availability, etc.

3. You can choose the fries production line that suits your production situation according to your factory situation or budget. No matter what production line you choose, we can make a unique production plan for you according to your factory.

How to start a french fries business during a pandemic?

During the pandemic, the production and sales of many factories have been affected to a certain extent. However, some popular brands have managed to expand their business. It is helpful to know about effective strategies for the start-up of the french fries business during the pandemic to grow your business.

Specific sales cases of frozen french fries production lines

Fully automatic french fries production line running in Turkey

French fries machine in Australia

Egyptian customers visited our french fries production machine factory

The customer from Iraq bought 200kg/h fully automatic French fries production line

Welcome to visit Taizy french fries machine factory
