Semi-automatic banana chips processing plant / plantain chips production line

Table of Contents

100kg/h banana chips processing line

Semi-automatic banana chips processing plant is to produce fried banana slices that is full of nutrition and favored by people. The capacity of the plantain chips production line ranges form 50kg/h to 500kg/h, and we can customize it on the basis of your demand. In the recent years, due to low cost and high capacity, his line is widely applied to the banana processing industries.

The list of the plantain chips processing machine

NumberName
1Banana peeling machine
2Banana slicer machine
3Banana chips blanching machine
4Banana chips dewatering machine
5Banana chips frying machine
6Banana chips de-oiling machine
7Banana chips seasoning machine
8Vacuum packing machine

The working steps of banana chips processing plant

Banana peeling machine

Banana peeling machine is the first step in the banana chips processing plant, and its function is to remove the banana peel. The raw material usually is green banana(plantain), since it is easy to peel without breaking the inner banana. The peeling rate of this machine is high, and it is very easy to use.

banana peeling machine

Technical parameter

Voltage380v/220v
Power0.4 kw
Capacity100kg/h
Weight94kg
Size950*730*930mm

Banana slicer machine

We use press type banana slicer machine to cut the banana into small slices, the thickness of slices is 2-7mm, which can be adjusted in accordance with your need. The whole operation just needs one person to push the banana into the inlet, and we will get the banana slices in several seconds.

Banana slicer machine

Technical parameter

Power1.2kw
Voltage380v or 220v
Weight100kg
Size1100*900*1200mm
Capacity100kg/h

Banana chips blanching machine

To avoid the oxidation of banana chips, we should use blanching machine to remove the starch inside them. The operator just needs to add water into machine, when the water temperature reaches the specified temperature, you can place the banana slices into machine. By using this machine, the color of final fired banana slices will become bright with great taste. The blanching temperature is around 80-100℃, and it is adjustable.

Banana chips blanching machine

Technical parameter

Power24kw/h
Capacity600kg/h
Size1200*700*950mm
Weight120kg

Banana chips dewatering machine

After using blanching machine, it is necessary to use dewatering machine to remove the water on the surface of banana chips. Only in this way can you avoid oil splashing everywhere when frying.

Banana chips dewatering machine

Technical parameter

Capacity100kg/h
Size1100*500*850mm
Voltage380V/220V
Power  1.5kw
Weight 350kg

Banana chips frying machine

In banana chips processing plant, frying is an important steps, since it determines the quality of banana chips. The frying temperature is 160-180℃, and it is also adjustable. The proficient feature of this frying machine is that heating tube can work independently, which greatly improves the working efficiency.

Banana chips frying machine

Technical parameter

Power24kw/h
Capacity600kg/h
Size1200*700*950mm
Weight120kg

Banana chips de-oiling machine

Banana chips de-oiling machine is as same as the dewatereing machine, and you can just buy one if you want to save cost. However, i recommend you to buy two machines, for it can save you much time and energy. It uses the centrifugal principle to throw oil out of the machine, and the de-oiling rate is very high.

Banana chips de-oiling machine

Technical parameter

Capacity100kg/h
Size1100*500*850mm
Voltage380V/220V
Power  1.5kw
Weight 350kg

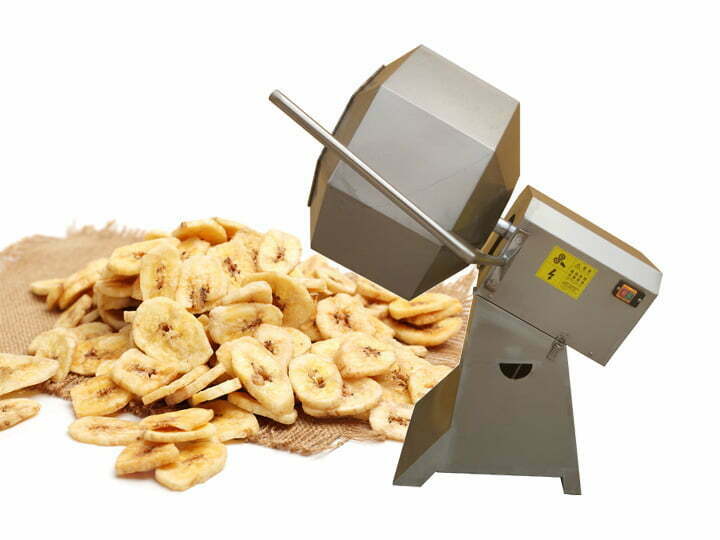

Banana chips seasoning machine

Different person like different flavors of banana slices, which can be achieved by seasoning machine. Here we use octagon structure seasoning machine that can spread the seasoning on the surface of banana chips evenly. Of course,we can provide you with recipes for different flavors if you need.

Banana chips seasoning machine

Technical parameter

Power1.1kw
Voltage380v/220v
Weight190kg
Size1100*800*1300mm
Capacity100 kg/h

Vacuum packing machine

There are different kinds of food packing machine, but we often use vacuum packing machine in plantain chips production line. This packing machine is to extract the air in the bag, and it can pack banana chips automatically with high capacity. The banana chips can be stored for a long time after using this machine.

Vacuum packing machine

Technical parameter

Power2-4(bags/min)
Seal size600*8mm
Capacity300kg/h
Size700*610*160mm

Why to choose Taizy Semi-automatic banana chips processing plant?

We have been manufacturing banana chips processing plant for more than 10 years, and Taizy is time-honored factory in the related industries. If you choose us, we will provide you best solution according to your current situation, help you to gain benefit in local market. Besides, we can assist you to analyse when can you earn back the money you invest.

The advantage of plantain chips production line

1.This plantain chips production line bears low cost and high working efficiency, and it can really help you get high profit, for banana chips is widely welcomed in the daily life.

2.All machine is easy to operate, and you do not need to spend much time learning how to use.

3.The banana chis processed by this semi-automatic banana chips processing plant boast bright color and great taste.
