Semi-automatic potato chips making machine for small plant

Table of Contents

Well designed Semi-automatic potato chips processing machine is able to produce potato chips with a crisp taste. Crisp potato chips are the common snack in our daily life, and it is favored by people due to different kinds of flavors. These potato chips machines all made of stainless steel and can work with high efficiency, widely applying to the different chips manufacturers.

The semi-automatic potato chips processing machine includes different capacities, from 50kg/g-200kg/h. Now I take the capacity of 100kg/h as an example.

Small potato chips plant working video

The required machine in 100kg/h potato chips production line

NumberName
1potato washing and peeling machine
2potato chips cutting machine
3chips blanching machine
4 chips dewatering machine
5 potato chips frying machine
6 chips de-oiling machine
7 seasoning machine
8potato chips packing machine

Potato washing and peeling machine

potato washing and peeling machine

This is potato washing and peeling machine.You can use this type machine to clean and peel potatoes since it is equipped with a high washing rate and peeling rate.

The washed potatoes are very clean without any dirt on the surface of it. Most importantly, this potato washing machine can fully peel the potatoes.

ModelTZ-20
Size1600*850*800 mm
Power0.75kw
Capacity200kg/h
Voltage380v,50hz
Weight280kg

Chips potato cutter machine

The potato cutter machine is used to cut the peeled potatoes into slices. The thickness of the potato slices is adjustable. Now I introduce you two common types of potato chips cutting machine, and you can choose one anyone when you purchasing.

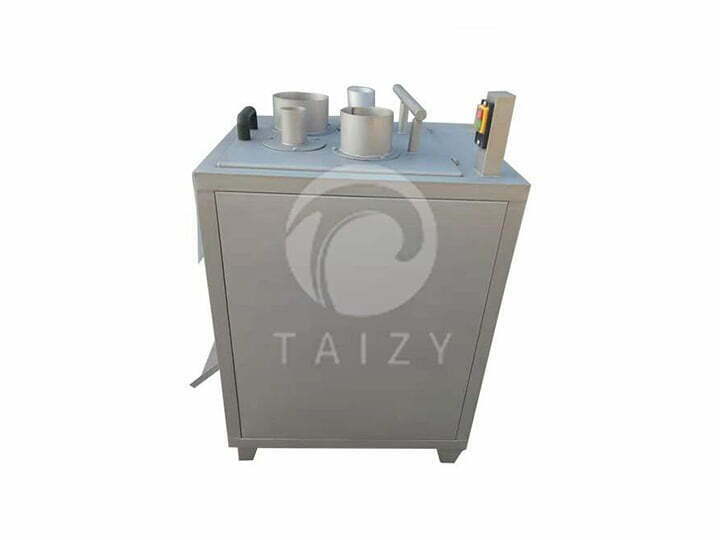

Type one:press type

potato chips cutting machine

It is a press type potato cutting machine. When working, you need to push the potato into the machine, and only one potato can be placed one time.

The shape of potato slices is elliptical with a rather smooth surface. What’s more, it also can cut other fruits and vegetables.

Technical parameter

Power1.1kw
Voltage380v/220v
Weight 110kg
Size950*900*1000mm
Capacity600-700kg/h

Type two: multifunctional potato cutter

potato cutting machine

This potato cutting machine is able to cut potato into two shapes such as round shape and wavy shape, which can be achieved by changing the inner blade.

There are two cutting blades inside the machine, and it is easy to disassemble and install. What’s more, they are vulnerable parts, and it is necessary to buy an extra one.

Technical parameter

ModelTZ-865TZ-312
Power750W1370W
Voltage380v/220v380v/220v
Weight 70KG145KG
Size750*520*900MM1100*600*1200MM
Capacity300-1000KG/H600-1000KG/H

Chips blanching machine

potato blanching machinery

In order to keep the bright color and taste of fried potato chips, you mush use chips blanching machine to remove the starch of potatoes.

The working principle is very easy. You just need to place the cut potatoes slices into hot water, and then the starch will be removed within a short time. The blanching temperature is adjustable, and its range is 80-100℃.

ModelTZ-150
Size1200*700*950mm
Power24kw
Voltage380v/220v
weight120kg
Capacity100 kg/h

Potato chips dewatering machine

dewatering machine

The next step is to remove the water of potato slice for safe frying. The control panel makes the dewatering time adjustable. And the dewatering time is 1to 2 minutes.

Technical parameter

ModelTZ-160
Size1100*500*850mm
Power1.5kw
Voltage380v/220v
weight350kg
Capacity200kg/h

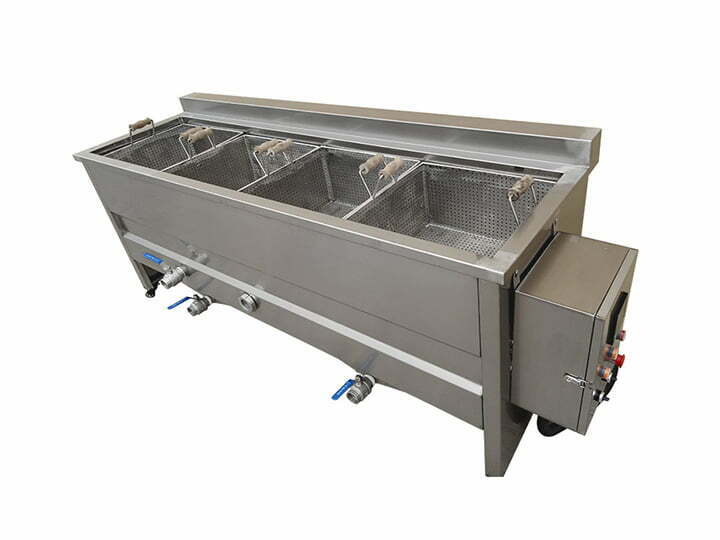

Chips frying machine

potato chips frying machine

Frying is the most crucial step during the potato chips processing machine. You can take out the fried potato slices after 5 minutes, and they can be eaten directly at this time.

Technical parameter

ModelTZ-170
Size1200*700*950mm
Power24kw
Voltage380v/220v
weight120kg
Capacity100 kg/h

Chips deoiling machine

chips deoiling machine

The purpose of using chips deoiling machine is to make the fired potato chips taste better since nobody like to eat rather greasy products.

Technical parameter

ModelTZ-180
Size1100*500*850mm
Power1.5kw
Voltage380v/220v
weight350kg
Capacity200kg/h

Seasoning machine

chips seasoning machine

After deoiling, it is time to use the chips seasoning machine. What’s the function of the seasoning machine? It is designed to spread different flavors to the fried potato chips. We can give you a suggestion about the recipe of flavors if you need.

Technical parameter

Power1.1kw
Voltage380v/220v
Weight190kg
Size1100*800*1300mm
Capacity100 kg/h

Potato chips packing machine

potato chips packaging machine

In the small potato chips plant, the last step is to use a vacuum packing machine.

This chips packing machine bears reasonable structure and size, and it can completely extract the air inside bags so that the fried potato chips can be stored for a longer time. Of course, it can pack other fruits as well.

Technical parameter

ModelTZ-210
Size1200*600*850mm
Power1.5kw
Voltage380v/220v
weight260kg
Capacity300 kg/h

Why do more and more people start to open potato chips business?

The data shows that as of the end of 2017, the global potato chips market has reached 29.7 billion US dollars, and the average annual sales volume increased by 5.9% from 2012 to 2017. The consumption of potato chips is still dominated by Western countries. The United States has the largest market in the world, followed by the United Kingdom, Russia, Brazil, China, and India. Therefore, the people in these countries have begun to import advanced potato chips machine in order to obtain higher profits.

Potato chips that meet the needs of the public can keep up with the development of the times

It is expected that the market will maintain natural growth in the next few years. Product innovation is one of the main driving factors. People should research the bold and novel tastes, especially the taste that caters to young consumers. The increasing demand for snacks and the ever-increasing quality are also important factors driving the development of the potato chips market.

At present, the demand for the convenience of snacks has further deepened, and consumers are increasingly inclined to replace snacks with meals. The manufacturers of potato chip machine are following this trend to cater to the needs of the public.

Now consumers are paying more attention to health issues, and healthy eating has become a trend. Therefore, potato chip manufacturers are under pressure to redesign formulas to reduce harmful ingredients such as salt and fat. With the rise in obesity, diabetes, gluten allergy, and other diseases, consumers are increasingly concerned about functional and non-GMO ingredients.
